Structural features：

1. The mountain shaped bridge is of welded structure with good bearing capacity.

2. Hydraulic power steering, easy and flexible operation, no side slip.

3. The front wheel inclination angle is designed to improve the stability of slope operation.

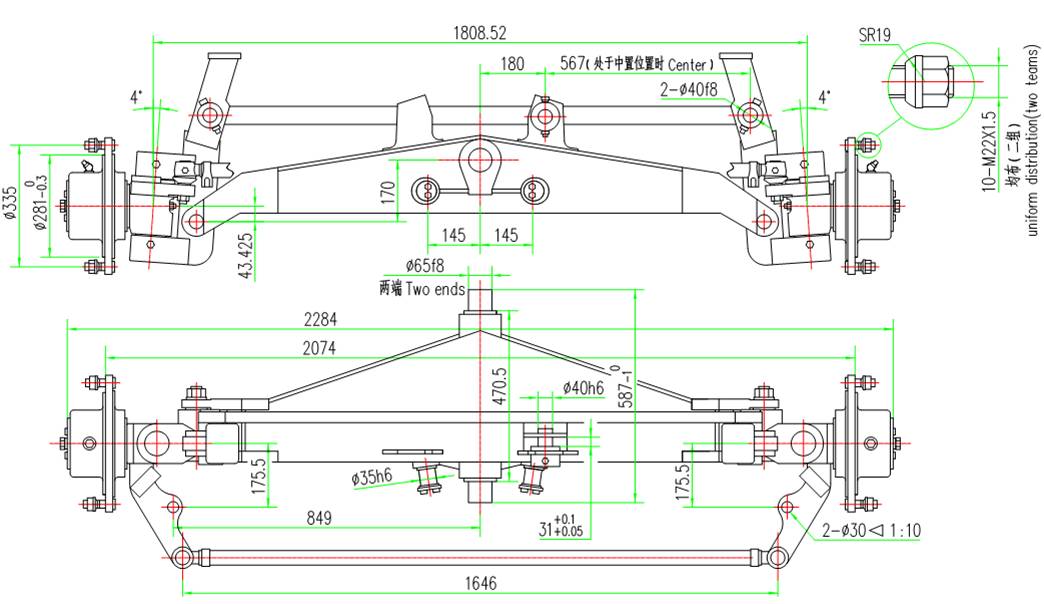

主要连接尺寸：

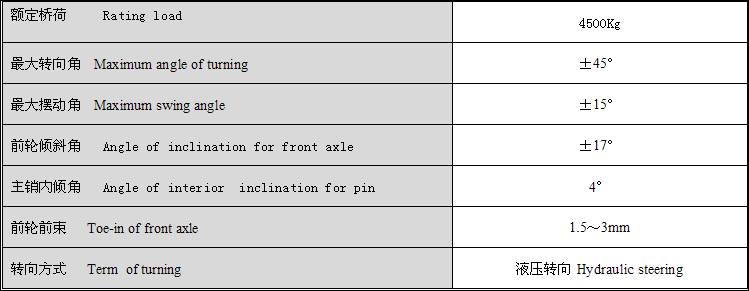

主要技术参数：
