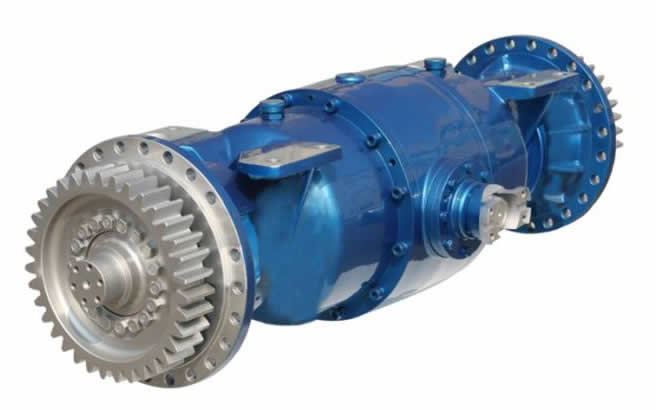

Structural features：

1. Two stage reduction transmission, wheel side big gear output power.

2. No spin anti-skid differential is selected to improve the trafficability of complex pavement.

3. It is exported to many main engine plants in Russia with stable and reliable quality.

4. It is suitable for 160-200 HP grader.

主要连接尺寸：

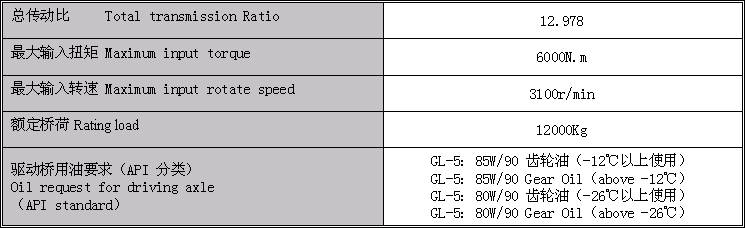

主要技术参数：
